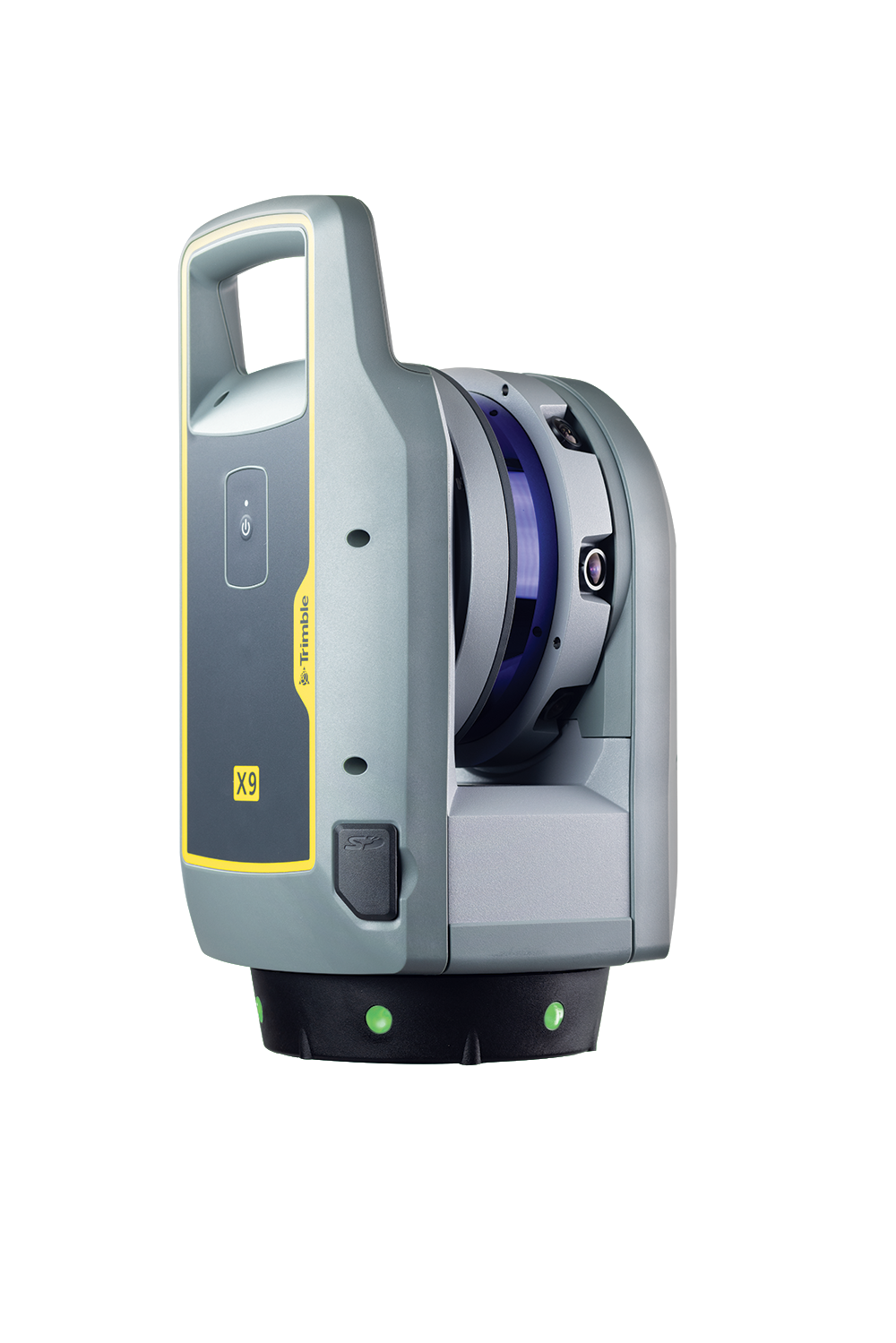

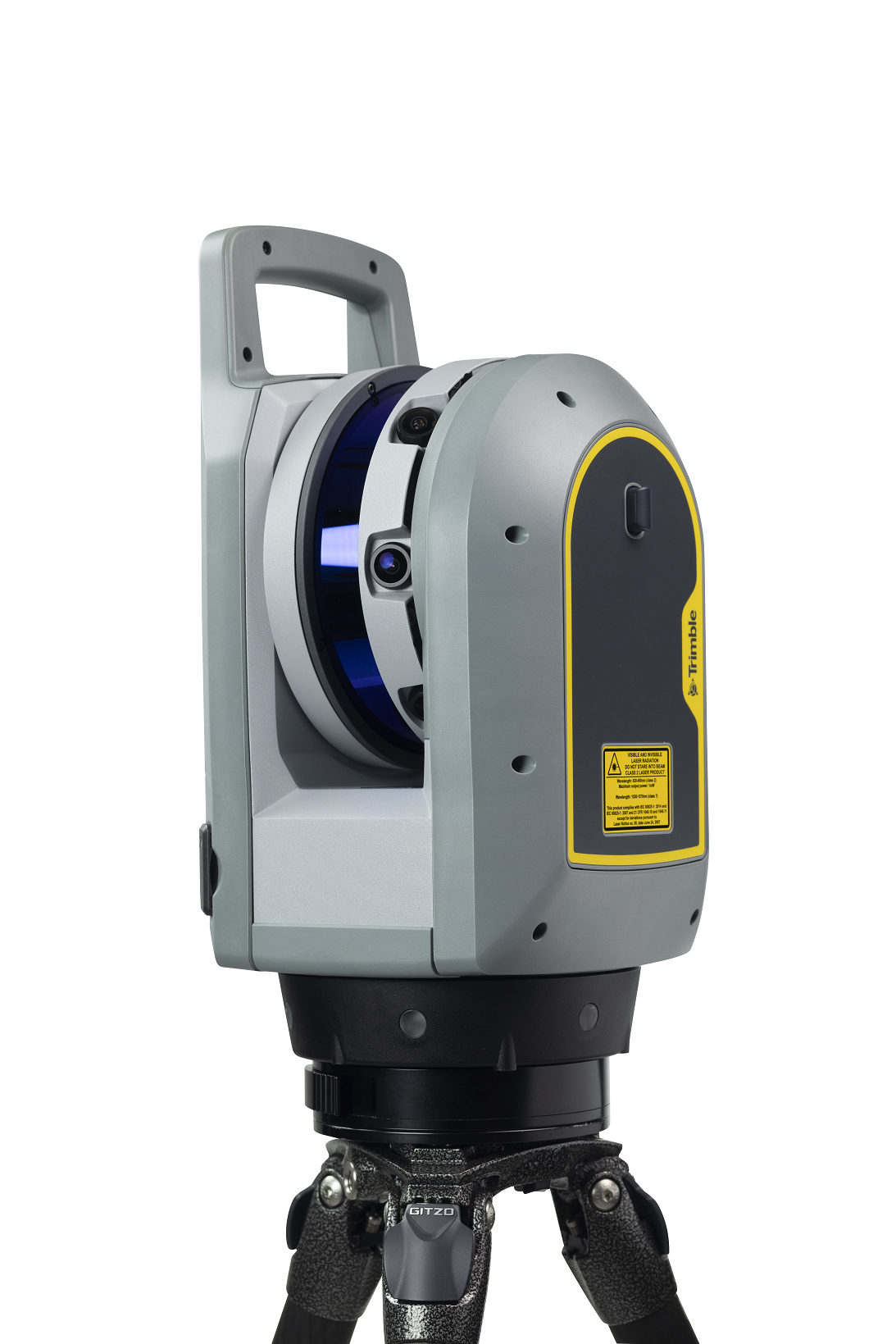

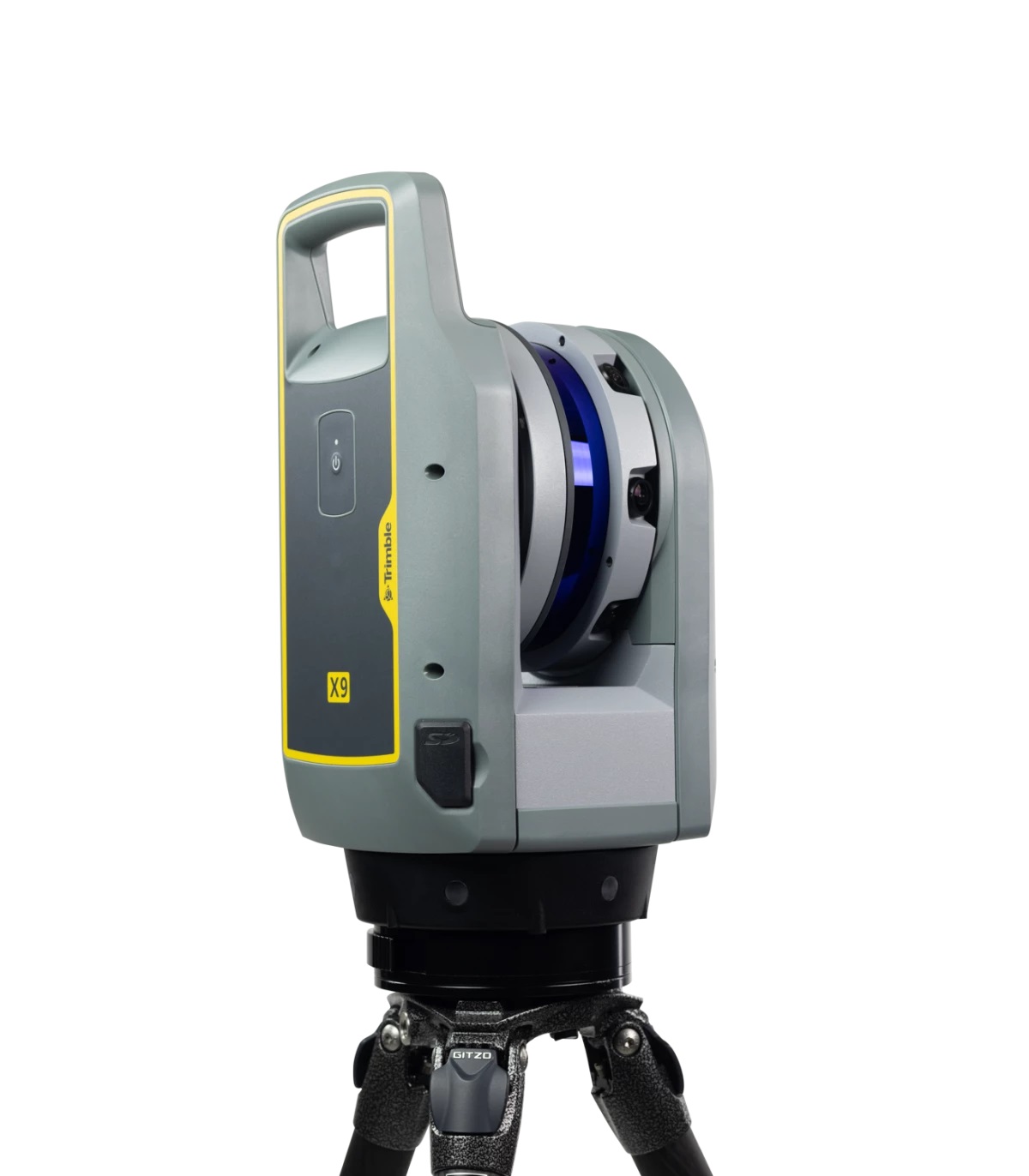

Trimble X9 3D scanner & Perspective field software

Trimble X9 and Perspective is a complete 3D scanning solution for use in construction, surveying and forensics. Scanners deliver ‘point clouds’, consisting of millions of measurements, that are the basis for drawings of the as-built situation or models for buildings, bridges, tunnels, dams, etc.
Performance and data quality are important but fast delivery of verified results in the field is the key to profitability. Customers need easy-to-use systems. The X9 offers self-leveling: automatically leveling itself before each scan to ensure consistent data quality in all conditions, automatic registration (linking scans together in the Perspective field software) and automatic calibration in the field.

Traditionally projects are registered back in the office. In case mistakes were made, return trips might be necessary. The combination of Trimble X9 and Perspective field software enables the swift delivery of verified results in the field. To this end, the Trimble X9 and Perspective eliminate the guesswork and complexity of scanning by combining the scanner's high speeds of up to 1000 kHz, wide range of 0.6m to 150m, high accuracy of 3.0 mm at 20 m, and fast scan times of 1-6 minutes with the software's automatic registration capabilities.

For customers, total cost of ownership includes the purchase price, maintenance, personnel cost and the ability to reliably capture and deliver projects on time. Thanks to its ability to perform automatic in-field calibration, the X9 owner will experience a minimal need to return the unit to the dealer or the manufacturer over its lifespan. Automatic calibration ensures consistent data quality and lowers maintenance costs.
