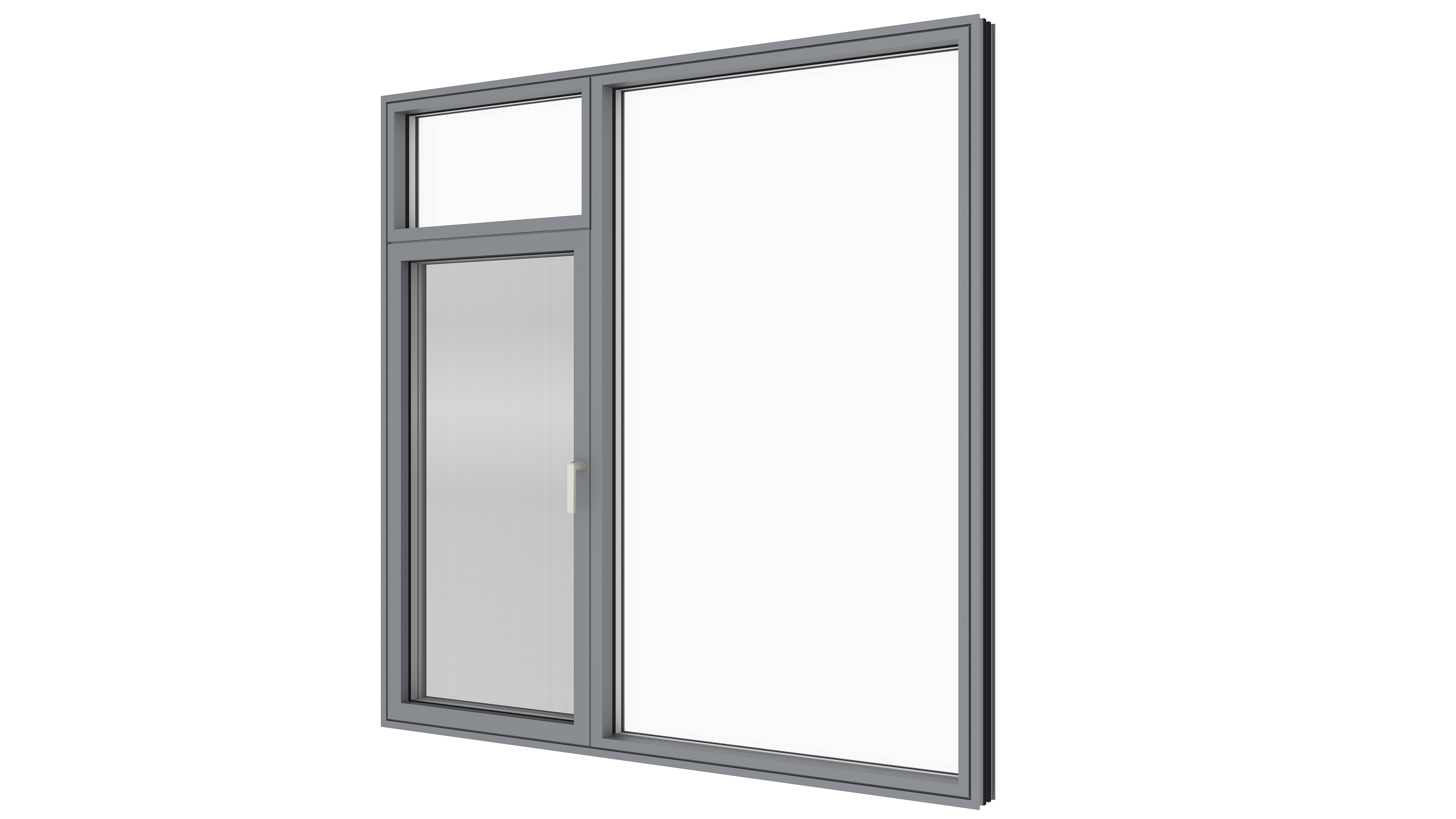

Annecy Thermal Break Insulation 105 Double Inward Opening

The Annecy Thermal Break Insulation 105 Double Inward Opening Window is a premium solution designed to meet the demands of modern architecture, offering a perfect balance of performance, aesthetics, and energy efficiency. Crafted from high-quality 6063-T6 aluminum alloy, with a profile wall thickness of 1.8mm, this window ensures superior durability and strength. The versatile glass configurations, including laminated insulated glass, single insulated, and double insulated options, cater to different insulation and noise reduction needs, enhancing both comfort and privacy.

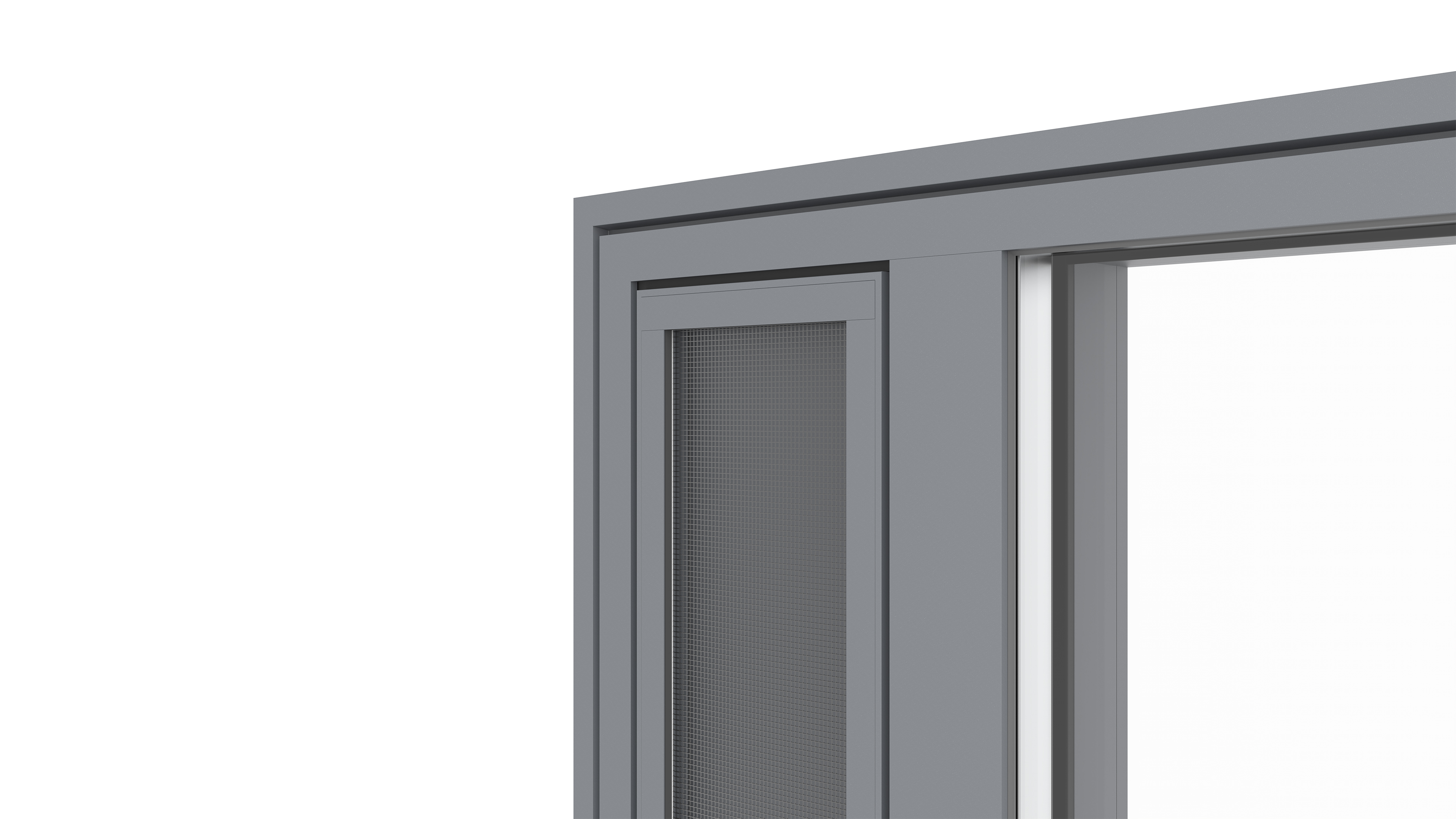

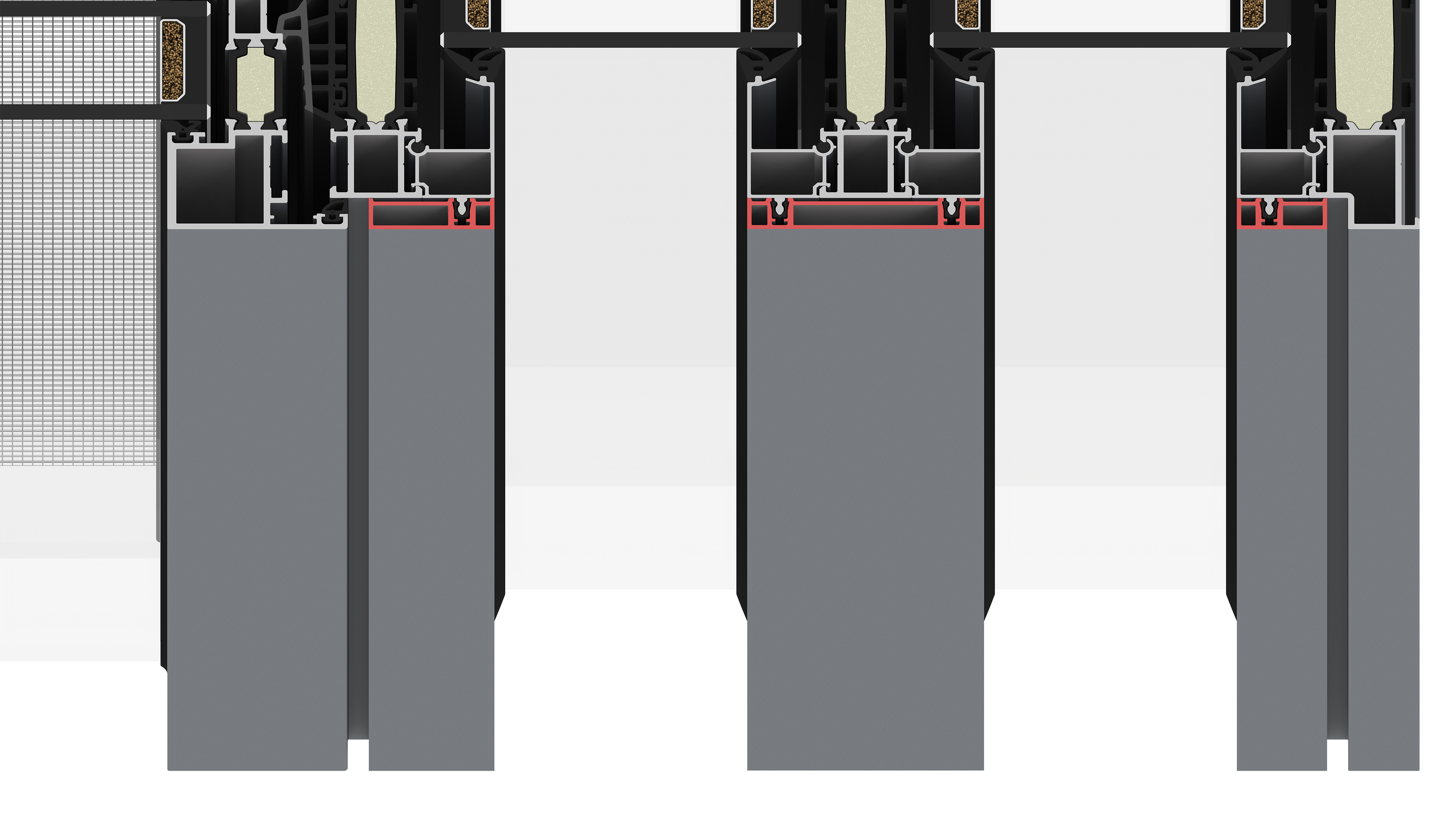

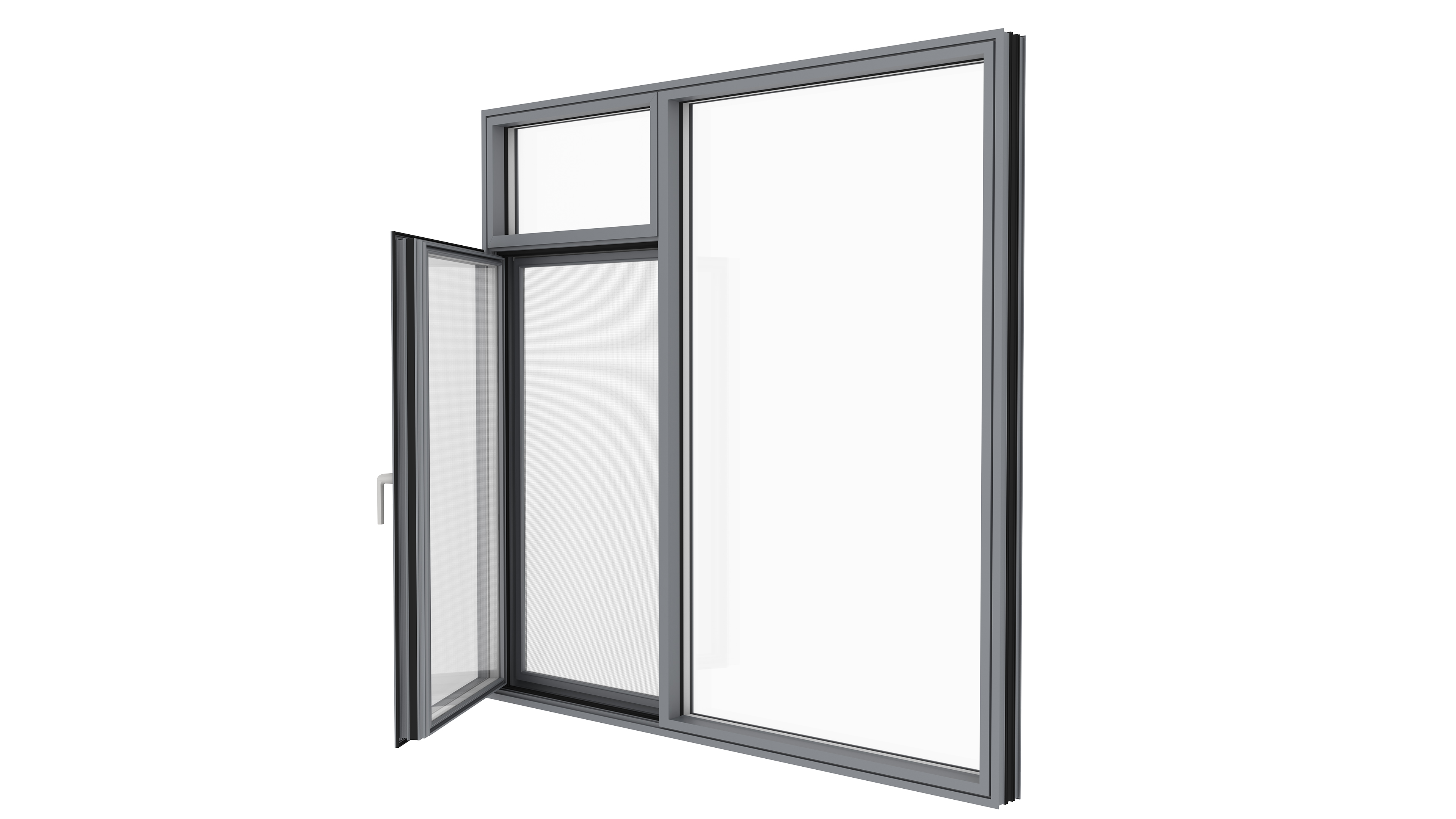

The window offers flexible functionality with options for single inward opening or tilt-turn operation, and comes standard with an inward-opening insect screen. Users can choose between high-transparency screens, steel mesh, or high-transparency steel mesh, depending on their specific requirements. For added privacy and light control, magnetically controlled blinds or solar-powered blinds can be integrated into the design. The three-layer sealing strip structure, featuring welded frame seals, guarantees exceptional airtightness with a GB8 rating, ensuring minimal air leakage and superior thermal insulation.

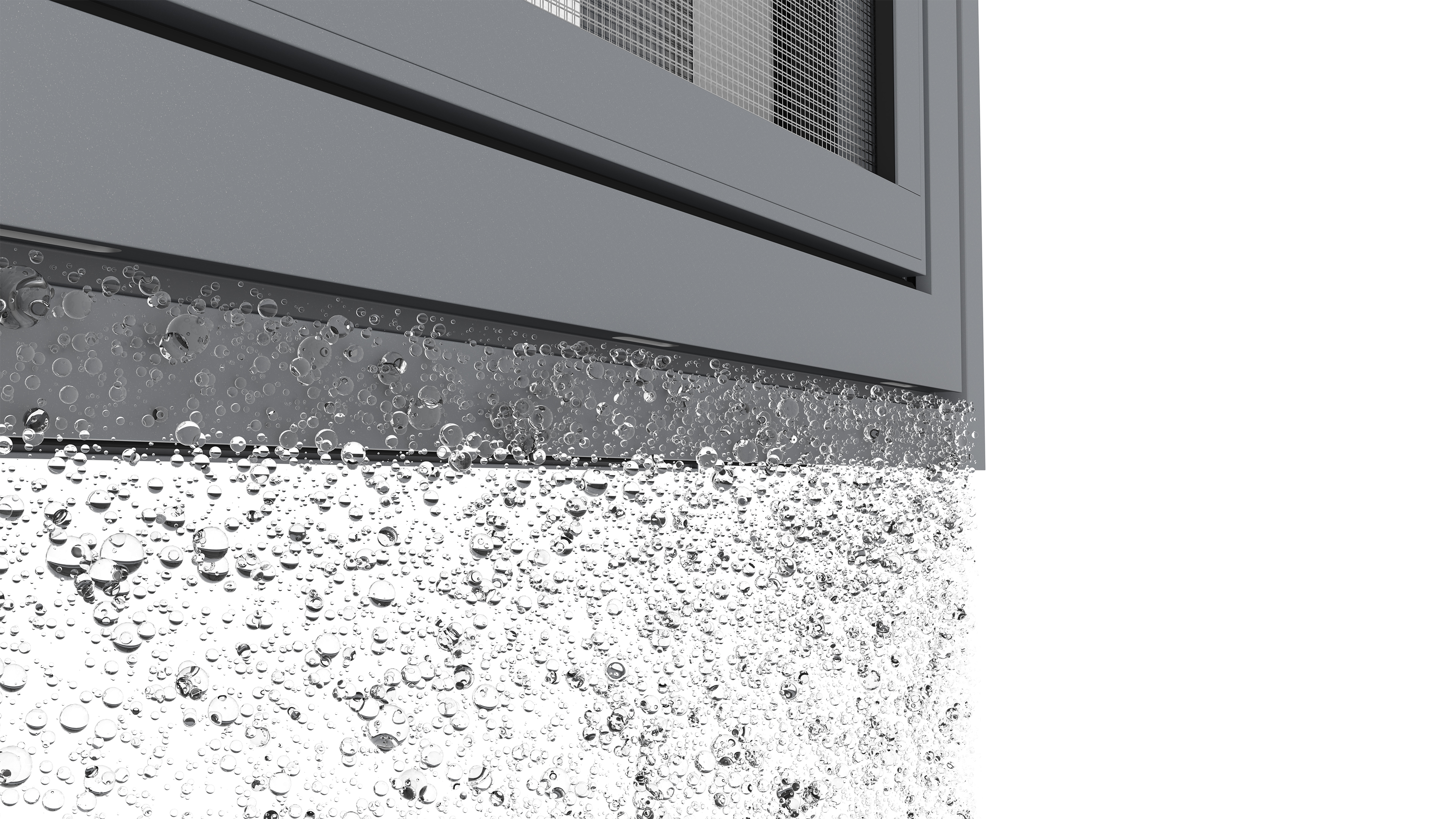

One of the standout features of this window is its innovative hidden vertical drainage system. This design not only enhances drainage efficiency but also maintains a sleek, uncluttered facade, contributing to its modern aesthetic. With structural reinforcements, the Annecy 105 Window achieves outstanding wind resistance, meeting GB9 standards even for large window sizes, ensuring it can withstand harsh weather conditions.

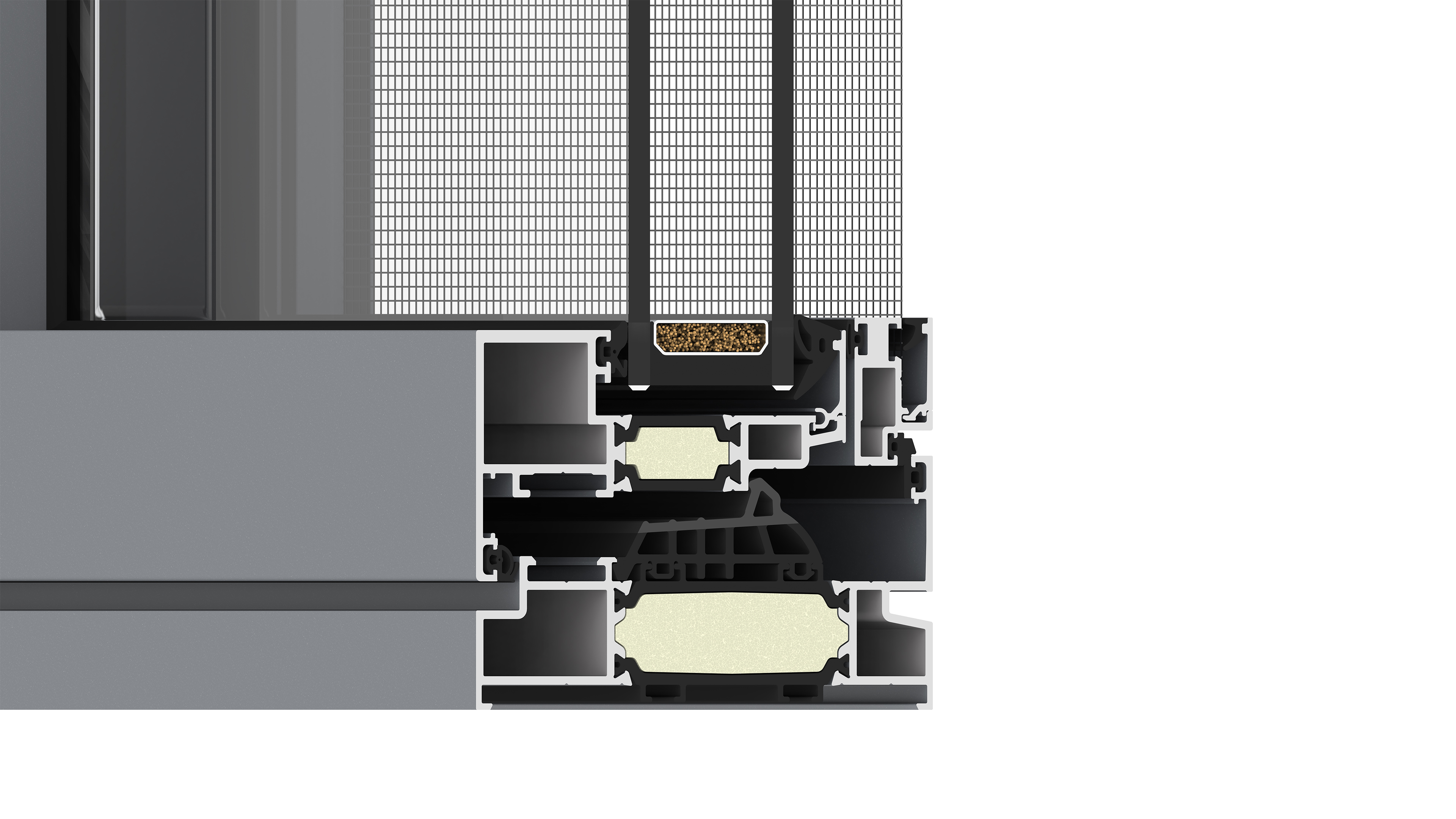

In terms of sound and thermal insulation, the window is equipped with double laminated insulated glass that provides a remarkable sound reduction of up to Rw 47dB. Additionally, the use of Low-E glass with warm edge spacers allows the window to achieve a low heat transfer coefficient (Kw) of just 1.1W/(m²·K), making it highly energy-efficient. The flush frame and sash design, combined with ultra-narrow profile lines, create a clean, modern visual effect, making this window an ideal choice for those seeking both high performance and refined aesthetics. The Annecy 105 Window sets a new standard in contemporary window technology, offering lasting value, functionality, and style.
