Wormy Compact Fishing Systems

INSPIRATION
I have broken a lot of fishing rods in my life, so I bought as few as possible. I also hated carrying them. Wanted something very simple and universal that I could use right away or put in my pocket if I had to go. A compact fishing rod has to meet the same challenges as any multi-tool or as a Swiss army knife: to be multifunctional, small, and durable. The goal was to design a system that has several ways of usage with the smallest possible size and minimum weight for the sake of durability.

UNIQUE PROPERTIES / PROJECT DESCRIPTION

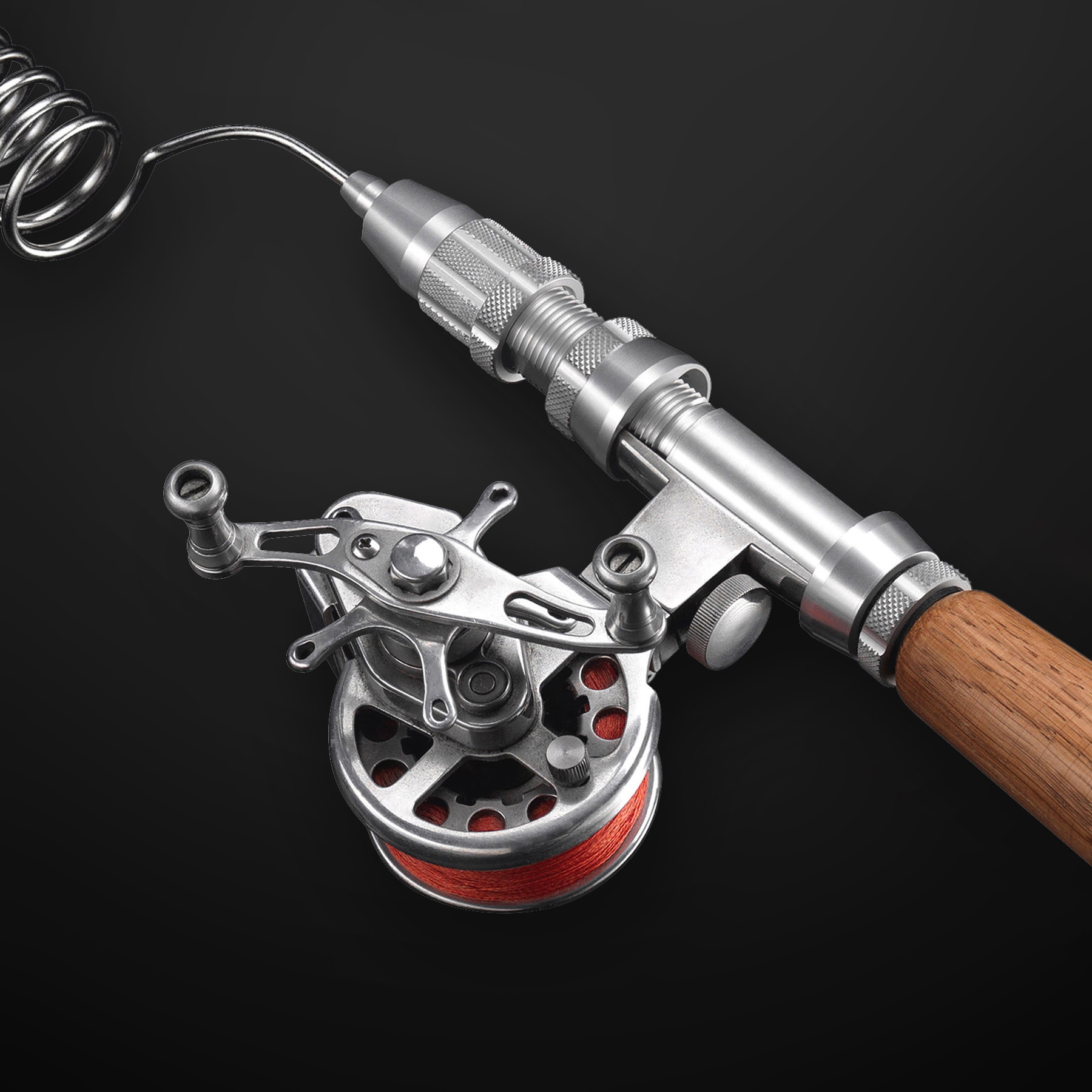

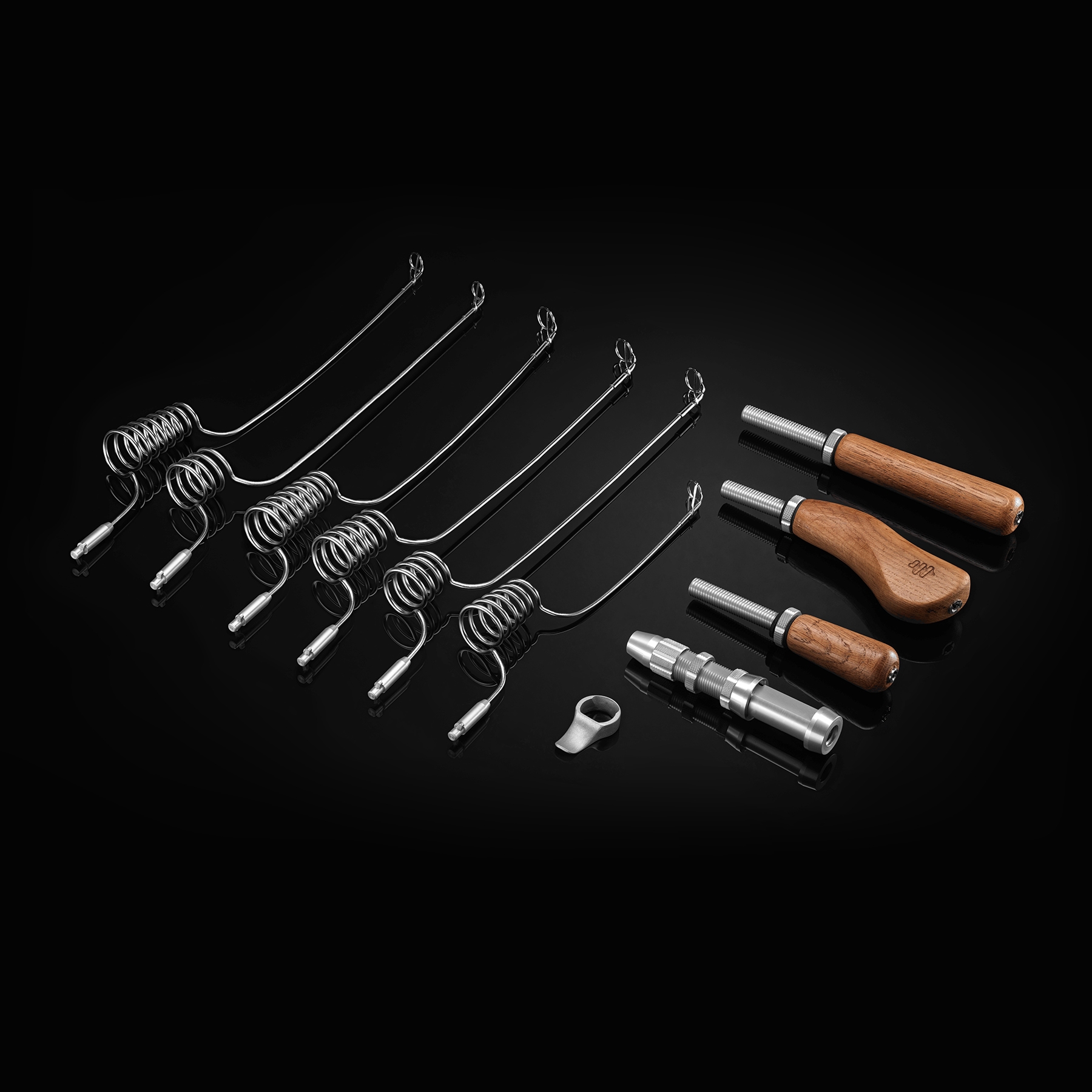

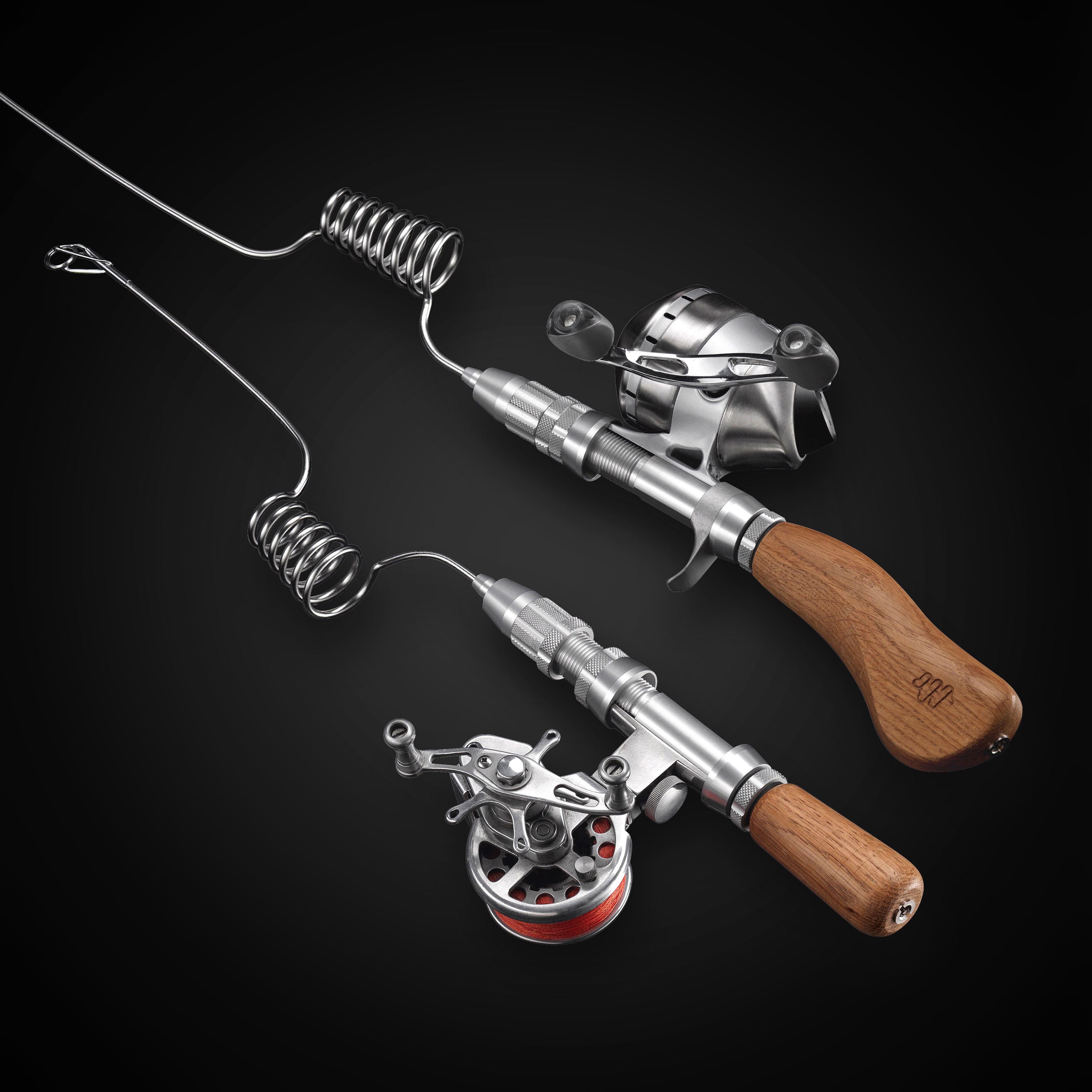

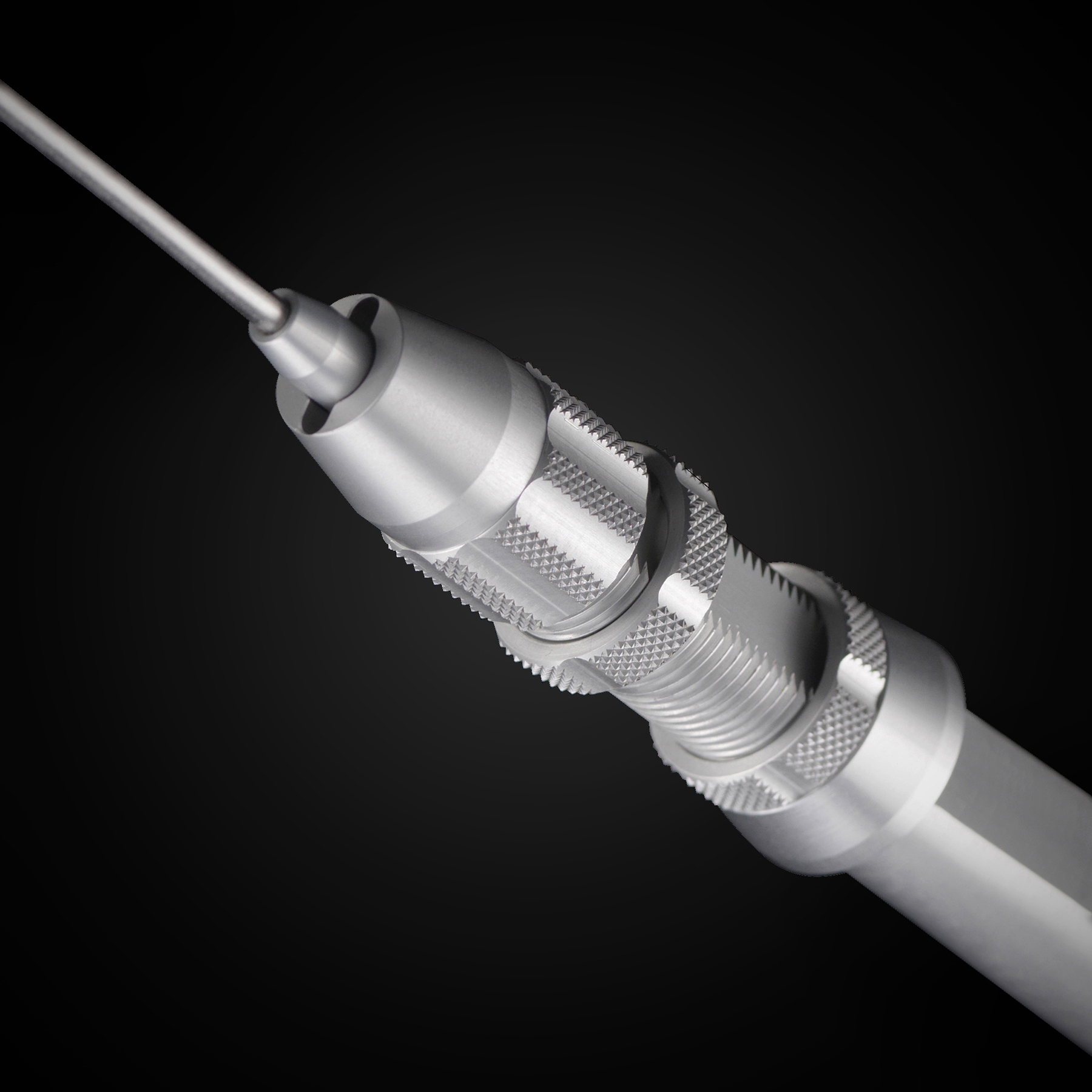

Its central element is a reel seat from which the trigger can be pulled down, making it suitable to receive lower-positioned reels besides upper-positioned ones. There is a threaded shaft hole at the end of the centerpiece into which we can screw in various types of handles. Different spring poles can be fitted in the socket at the other end of the reel seats' axis. The original package can be extended at any time with additional spring poles and grips.

PRODUCTION / REALIZATION TECHNOLOGY

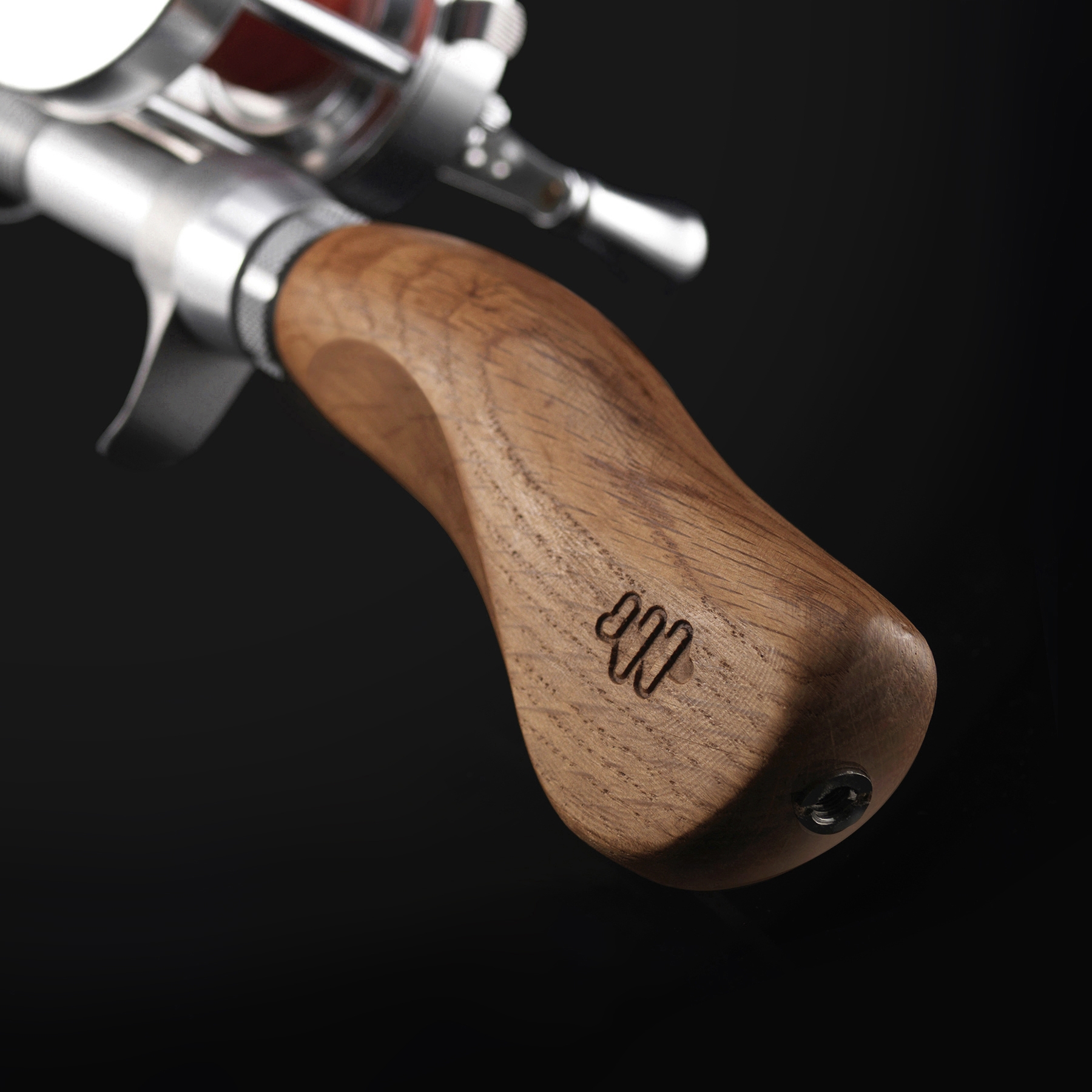

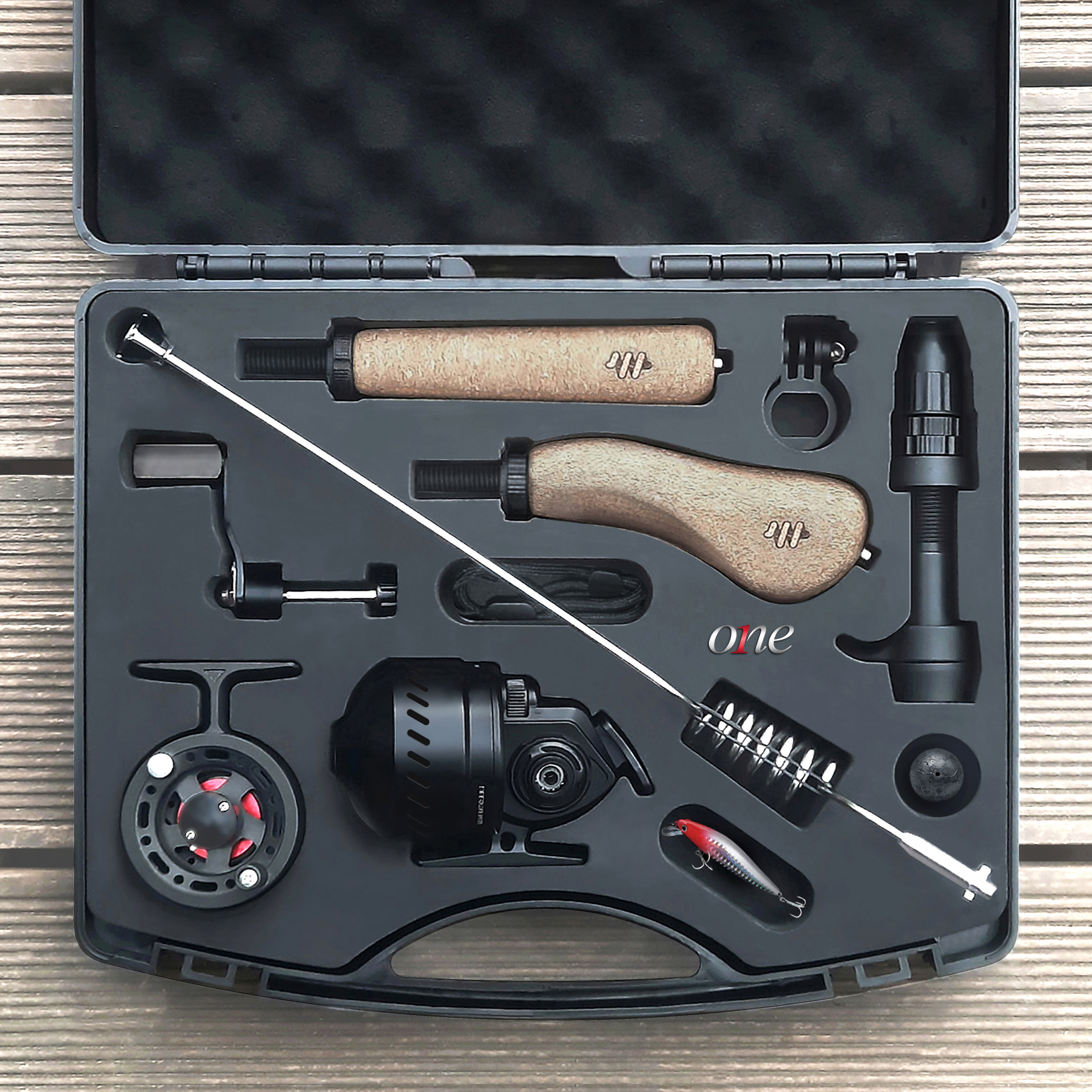

The Classic Range uses stainless steel spring rods, CNC machined seawater-resistant 6061 T6 aluminum reel seat and hardwood handles. The result is a truly unbreakable, portable fishing rod that is built to last for decades. The Black Range ONE will soon be launched, with cork composite handles and a carbon composite reel seat unit that is injection-molded for mass production. It is resistant to salt water, alkalis, and UV radiation. This large-scale series creates a significantly more affordable product, which further expands the range of customers and applications.

OPERATION / FLOW / INTERACTION

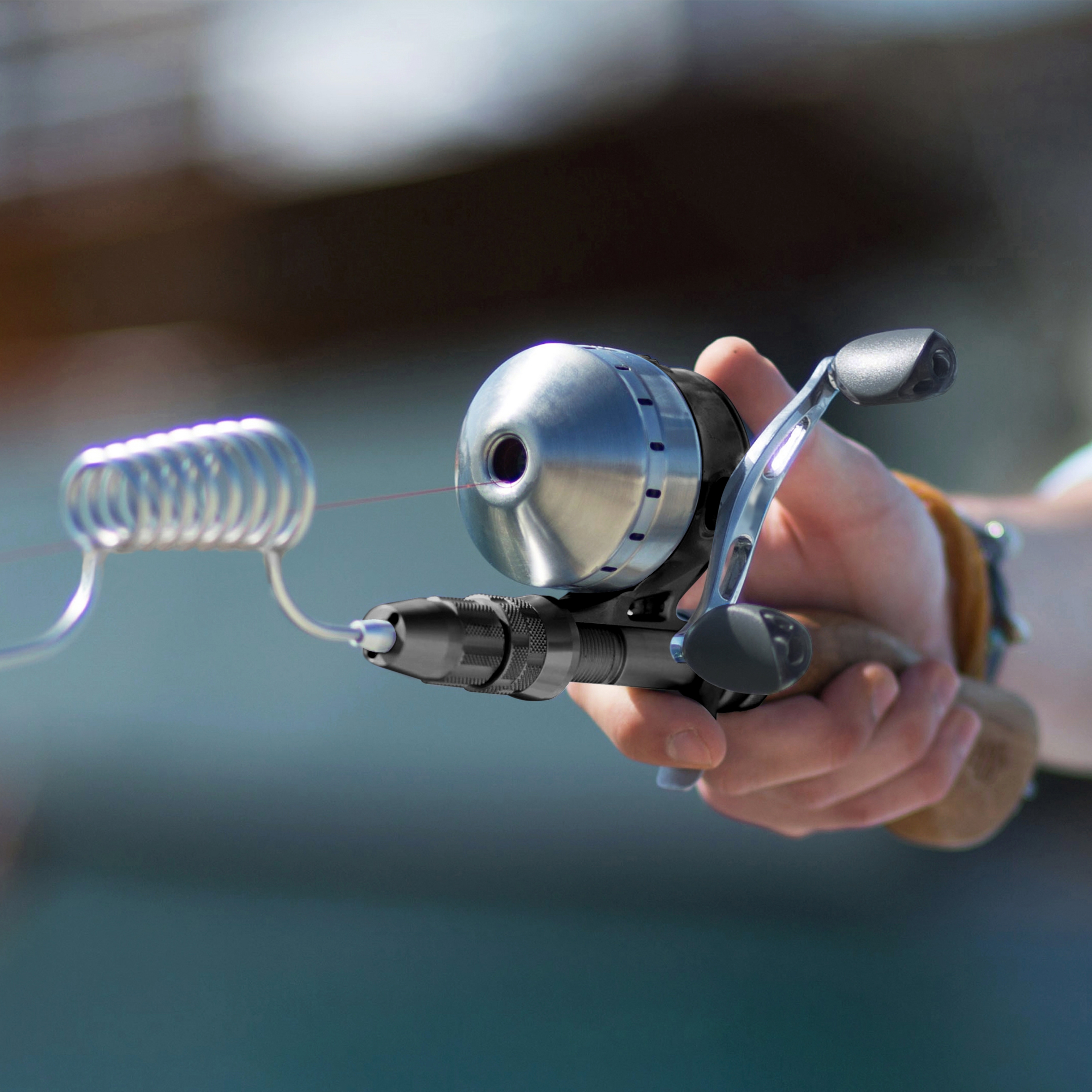

Using it is roughly the same as using conventional rods, except that the body's functioning is ensured by a stainless steel spring. We can use interchangeable springs with different mechanical properties depending on the casting weights and the method we use. The spring pole arcs at the same time serve as a line-leading ring. The short size of the device allows you to cast not only from above but also from the side or bottom. The spring, like a catapult launches the bait.
